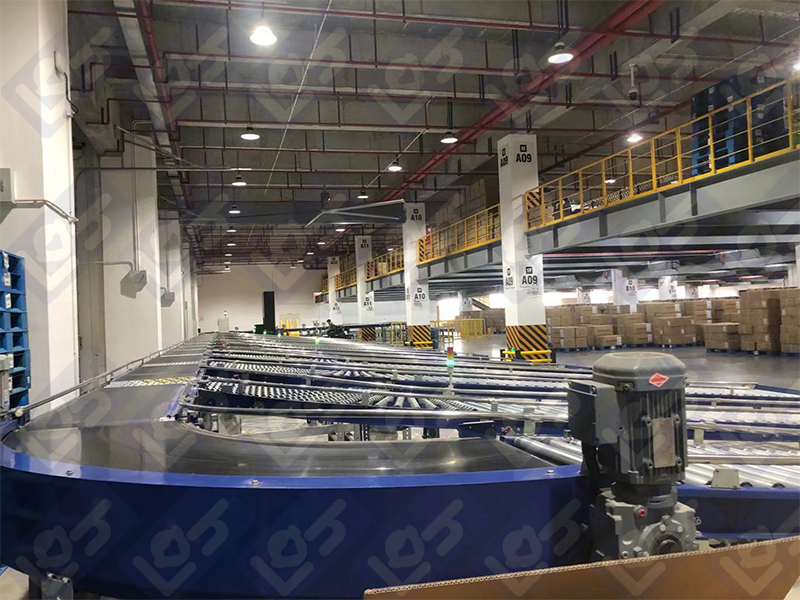

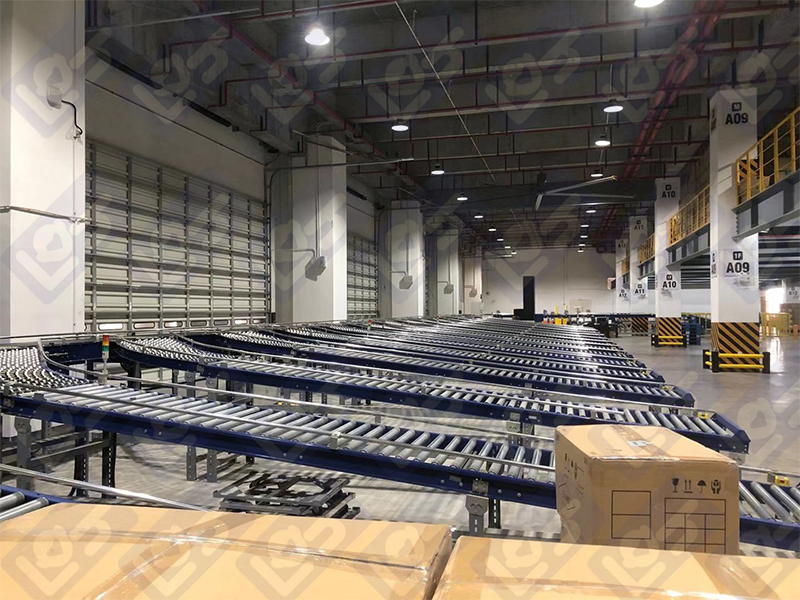

Logistics whole plant conveyor line
Logistics whole plant conveyor line
The overall design of logistics whole plant is mainly based on improving efficiency and shortening time. The installation and debugging are combined with the site size, personnel and business needs to meet the business needs of different customers.The transmission from different angles, according to the order issued by the front-end management system, the passing goods through can be automatically diverted and sorted according to the region, goods type, commodity channels, etc.
In order to flexibly convey products, reduce manual operations, and adapt to complex environments, our company provides a variety of options, such as double-chain roller machines, co-parallel merging conveyors, right-angle roller conveyors, turning belt conveyors and so on. Relying on advanced control systems and transportation equipment to improve the stability and accuracy of the goods during the transportation process, to achieve the various transportation needs of customers.
Why choose us?
The headquarter is located in Double Height Building, No. 35, Lane 800, Meijiabang Road, Songjiang, Shanghai. The production base is located in a wholly-owned factory of 48 acres in Nantong, Jiangsu, with a large standardized workshop of 20,000 square meters. It has senior engineers, gas and electricity engineers, senior technicians, manufacturing and installation technicians, and a complete quality management system.
Products

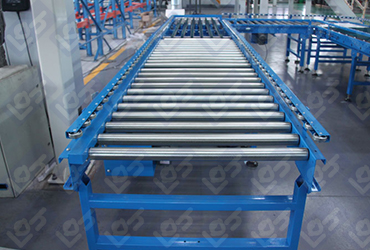

Double chain drum machine
C frame: 140*32*3T
Roller: specifications ￠50, ￠60, the integral multiple of the pitch of the chain
Speed: 1~30m/min
(If the speed is adjusted, a frequency converter is required)
Bearing capacity: max50 kg/m

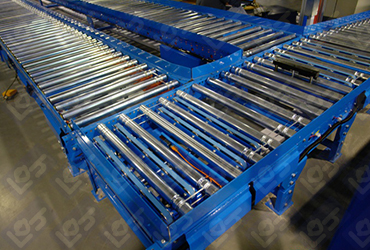

O type belt roller machine (electric roller)
C frame: 140*32*3T
Roller: specifications ￠50, spacing P80, P100, P120mm
Speed: 1~60m/min (If the electric control card comes with ten-pole speed regulation)
Bearing capacity: max30 kg/m
Power: 60~90W (electric drum 37w)

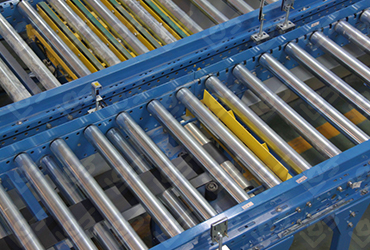

Friction belt roller machine
C frame: 140*32*3T
Roller: specifications ￠50, ￠60, spacing 80, 100, 120mm
Speed: 1~40m/min (if speed is adjusted, frequency converter is required)
Bearing capacity: max30 kg/m
Power: 0.3KW~2.2KW

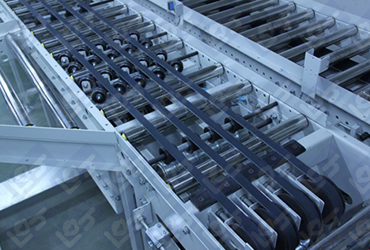

Narrow belt conveyor
C frame: 140*32*3T
Speed: 1~120 m/min
(If variable speed, frequency converter is required)
Carrying capacity: max30 kg/m (medium size)
Power: 0.37~3kw

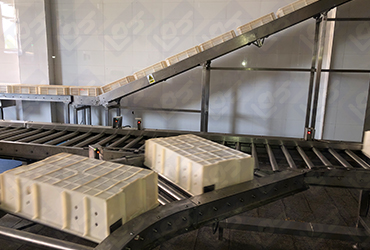

Roller parallel confluence conveyor
C-shaped frame: 140*32*3T,
Roller: specifications ￠50, ￠60, spacing 80, 100, 120mm
Speed: 1~60 m/min
(If the speed is changed, the frequency converter is needed, and the electric drum has ten-level speed regulation)
Carrying capacity: max30 kg/m (medium size)

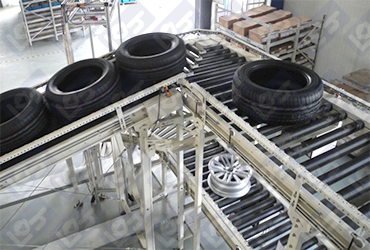

Right angle roller conveyor
C-shaped frame: 140*32*3T,
Roller: specifications ￠50, ￠60, spacing according to chain pitch
Speed: 1~60 m/min
(If variable speed, frequency converter is required)
Carrying capacity: max30 kg/m (medium size)

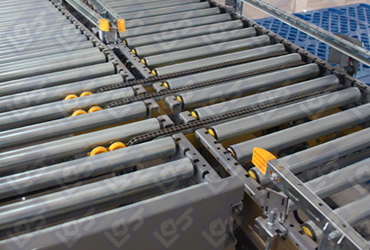

Chain transplanter
Steel structure
Speed: 20 m/min
Carrying capacity: max30~50 kg
Power: 0.37~0.75Kw
Chain: 08 series

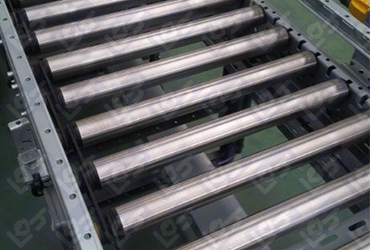

Wedge belt drum machine (electric drum)
C frame: 140*32*3T
Roller: specifications ￠50, spacing P80, P100, P120mm
Speed: 1~60m/min
(If the electric comes with a control card ten-pole speed regulation)
Bearing capacity: max30 kg/m

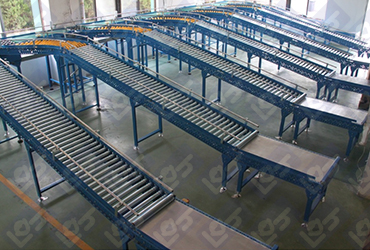

Gravity drum machine
C frame: 140*32*3T
Roller: Specification ￠50,
Pitch: P80, P100, P120mm
Bearing capacity: max30 kg/m

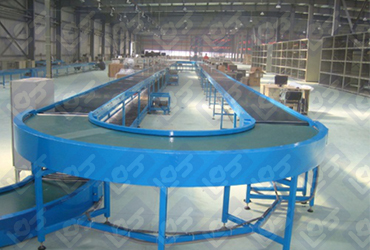

Turning belt conveyor
C frame: 250*50*3T
Inner R850mm
Speed: 1~120 m/min (if variable speed, frequency converter is required)
Carrying capacity: max30 kg/m (medium size)
Power: 0.37~3kw

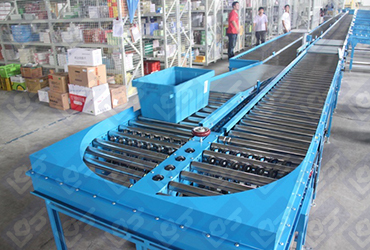

Small radius roller conveyor
C frame: 140*32*3T
Inner R75mm
Speed: 1~60 m/min (if variable speed, frequency converter is required)
Carrying capacity: max30 kg
Power: 0.55w

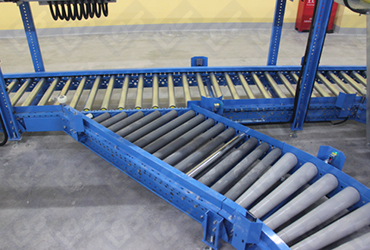

Roller (sub) converging conveyor
C型邊框：140*32*3T，
滾筒：規格￠50、￠60 ，間距80、100、120mm
速度：1~60 m/min
(若變速，需要變頻器，電滾筒十級調速）
承載：max30 kg/m（中型）

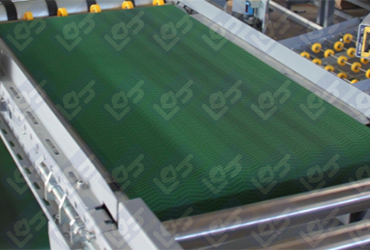

Electric roller flat belt conveyor
C frame: 140*32*3T
Speed: 1~60 m/min (if variable speed, frequency converter is required)
Carrying capacity: max30 kg/m (medium size)
Power: 0.37~1.1kw
Belt: T3 Holland "Amara" or Germany "Siglin"

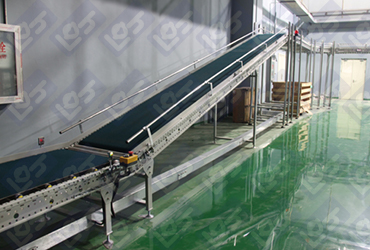

Climbing belt conveyor
C frame: 140*32*3T
Speed: 1~120 m/min
(If variable speed, frequency converter is required)
Carrying capacity: max30 kg/m (medium size)
Power: 0.37~3kw, the motor must be equipped with brake
